This is a listing for a 24 volt Carbon Winch. Please confirm you need 24 volt before placing your order.

Please note this item is a custom build and my take up to 14 days to dispatch.

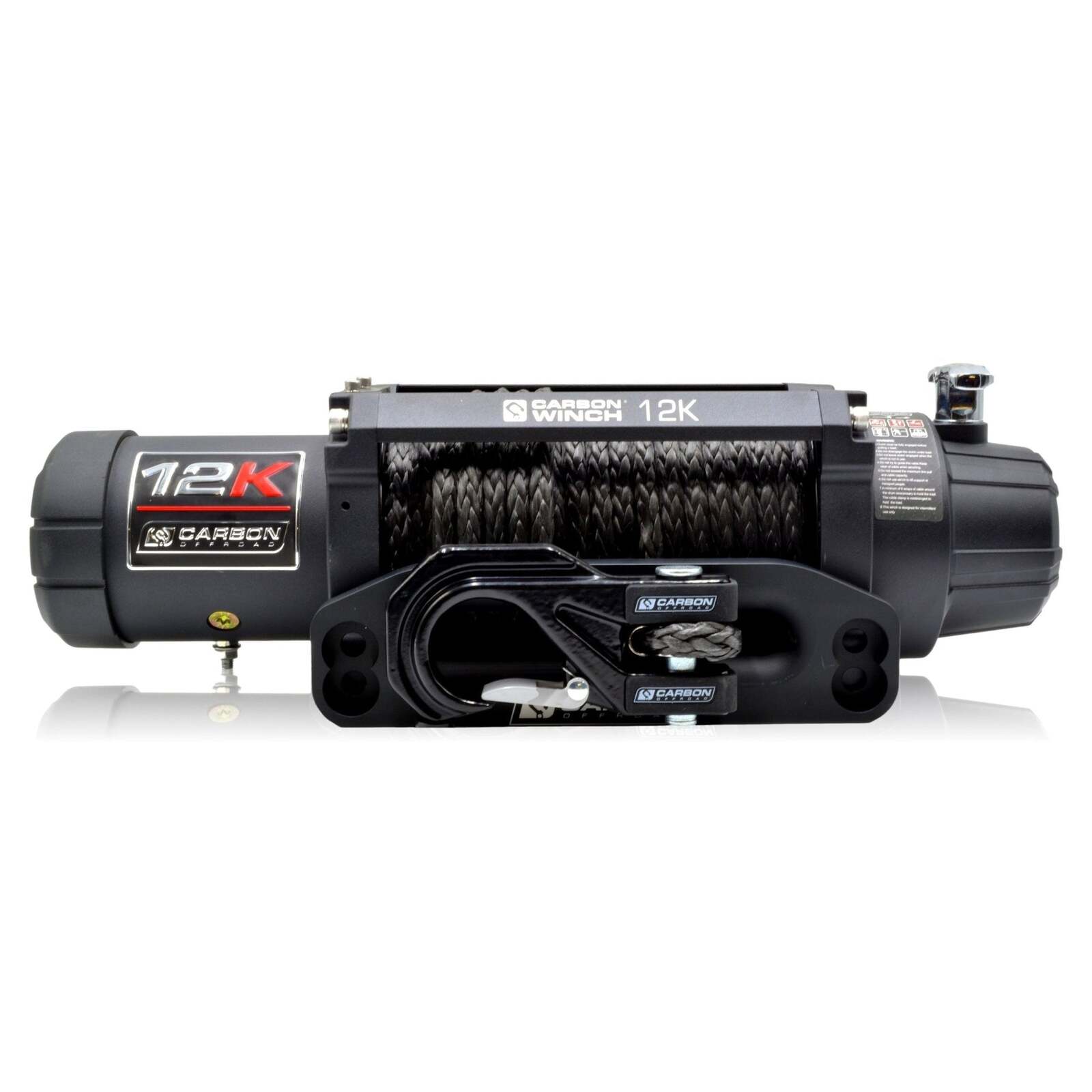

Carbon Winch 12k 12000lb Electric 24V 4x4 Winch
Version 3 2023 Model - Now IP68 Waterproof
5 Year Australian Warranty
Lightest 4x4 Winch

Due to strong customer demand the Carbon Winch range has gone ALL BLACK.

If you ask us nicely, we will also change out the black hook for the colour of your choice (has to be in stock) at or before the time of dispatch only.

The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier.

The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat.

IP68 meaning - Ingress Protection
6 - Can withstand dust and dirt
8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation.

You want the reliability of a winch that will perform when you need it to, time after time.

The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.

If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.

Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch  is super lightweight at only 19.0kg

Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.

Get a winch you can trust - Get a Carbon Winch

Lightest 4x4 Winch
The 12K winch, synthetic rope, control box, mounting bolts & fairlead weigh a total of 23.45kg

6.2HP Motor with 216:1 Gear Ratio
The reliable 6.2HP motor and tough 3 stage planetary gearbox will get you back on your journey

carbon-12k-12000lb-electric-winch-with-black-rope-hook-ver-3-514884_f1325448-c2d1-4605-86d7-788908f9871b_1280x__PID:17b4e25e-6225-4224-9dcb-34a067502845

IP68 Waterproof
Stress free river crossings and mud runs due to a newly upgraded rating of IP68

Get a Winch You Can Trust
• Lifetime Mechanical Warranty
• 5 Year Electrical Warranty
• 5 Year Water Ingress Protection Warranty

Winch Features

  • Designed by an Australian offroad business for the harsh Aussie and international conditions
  • IP68 rated fully sealed to resist water, dirt and dust ingress into motor, drum and gearbox mechanisms
  • 12000lb pulling power with a fast line pull ratio of 216:1 using a triple planetary gear set
  • 6.2HP series wound 12 volt electric motor (24 volt option)
  • Wireless remote control unit with a lanyard - FULLY SEALED RECEIVER UNIT built into the control box. Simple to activate by holding both buttons down for 3 seconds to activate the remote control and turns off after 90 seconds of inactivity.
  • The rotating ring gear clutch design minimises freespool drag and completely eliminates clutch engagement issues.
  • Electroplated planetary gear sets for long life
  • 3 layer membrane breather unit pre-fitted to the electric motor to allow condensation to evaporate and equalise pressure during heat cycles
  • Multi Fit Fairlead - there is no need to worry about which suits your bullbar! Simply install as standard fitment or move up to offset the rope outlet by 20mm
  • Fully zinc electroplated internals for corrosion protection
  • High performance motor brushes with copper impregnated contacts and corrosion plated brush mounts
  • Smooth ball bearing motor operation with a fully balanced motor armature for superior performance
  • Superior holding power by utilising a hoist style brake unit mounted to the drum end plate which applies mechanical braking through the gear train with no heat generated in the drum. No contact to the drum means there is no risk of heat damage to the synthetic rope
  • 4 position mounting for the control box bracket over the motor; over the drum, on top for flat mounting plates or in front of the winch for the top mounting control box when the winch is mounted vertically. Alternatively, 500mm cables allow remote mounting of the control box separately to the winch

What's in the Box

12kwinchkit__PID:6ecd2576-9583-4270-8d12-d54d883ca2d0

  • 1 x Carbon 12K winch
  • 24m x 10mm high strength synthetic winch rope
  • 1 x Carbon winch hook
  • 1 x 600A solenoid box Inc - all battery cables, wireless remote receiver, multi-fit mount
  • 1 x Long black battery cable
  • 1 x Wireless remote
  • 1 x Wired remote
  • 1 x Multifit CNC Alloy fairlead (offset and standard position)
  • 4 x Mounting bolts
  • 3 x Allen keys
  • 2 x Additional longer mounting bolts (fairlead mounting)
  • 2 x Additional nuts for remote mounting solenoid box
  • 1 x Hook hand saver strap
  • 1 x Carbon lanyard
  • 1 x Carbon stubby cooler
  • 1x Installation manual

carbon-12k-12000lb-electric-winch-with-black-rope-hook-ver-3-514884_f1325448-c2d1-4605-86d7-788908f9871b_1280x__PID:17b4e25e-6225-4224-9dcb-34a067502845

Technical Features

  • Part number: CW-12k
  • Rated line pull: 12000 lbs, (5450 kg) single-line
  • Motor: 12V DC 6.2HP series wound motor (24V option available)
  • Remote Control: Remote Switch, 12ft (3.7m) lead.
  • Wireless Remote Control: Included
  • Geartrain: 3-Stage Planetary.
  • Gear Ratio: 216:1
  • Clutch (free spooling): Rotating Ring Gear clutch with manual pull and twist clutch handle
  • Brake: Full load automatic brake installed in the motor housing end plate.
  • Fairlead: Multi-fit CNC billet alloy black anodised with laser etched logo
  • Lifetime Mechanical Warranty
  • 5 Year Electrical Warranty
  • 5 Year Water Ingress Protection Warranty
  • Synthetic Rope: 24m x 10mm diameter
  • Drum Diameter/Length: 64mm x 224mm
  • Mounting Bolt Pattern: 254mm x 114.3mm
  • Recommended Battery: 650 CCA minimum for winching
  • Winch Dimensions (L x W x H): 21.7'' x 6.3'' x 6.8'' (552 x 160 x 172mm)
  • Packing Dimensions (L x W x H): 24.2" x 14.5" x 9.8" (615 x 370 x 250mm)
  • Winch weight with synthetic rope attached: VERSION 3 - 19.0kg
  • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 23.45kg
SKU CW-12K_24V
Brand CARBON OFFROAD
Shipping Weight 20.0000kg
Shipping Width 0.370m
Shipping Height 0.250m
Shipping Length 0.610m
Shipping Cubic 0.056425000m3
