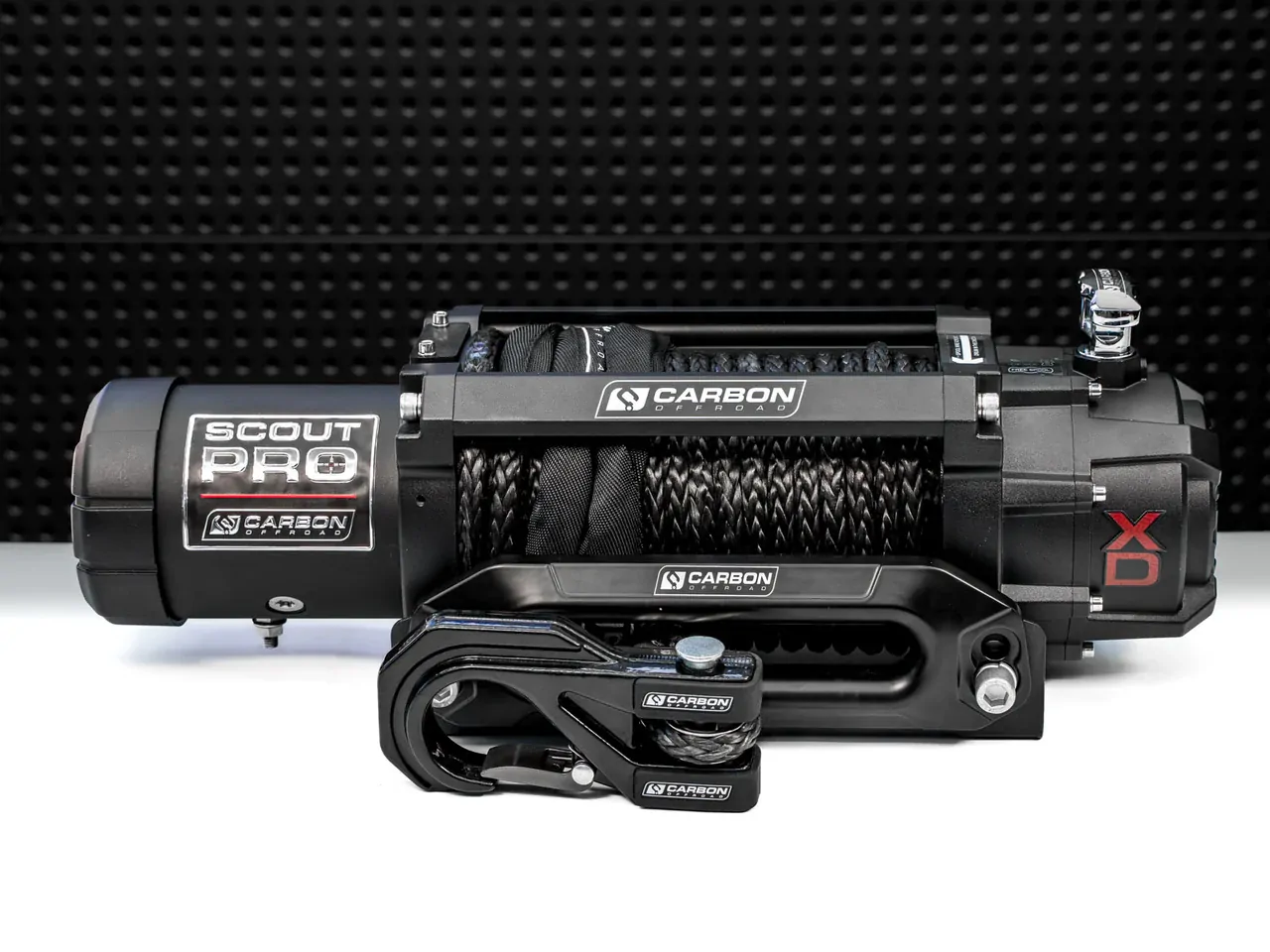

Carbon Scout Pro - 10000lb Winch V3

Part number: CW-XD10
Rated line pull: 10000 lbs, (4536kg) single-line
Motor: 12V DC 6 HP series wound motor (24V option available)
Remote Control: Wired with 3.7m lead
Wireless Remote Control: Included
Geartrain: 3-Stage Planetary
Gear Ratio: 179:1
Rotating Ring Gear
Brake: Automatic brake in the motor bracket
Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
Lifetime Mechanical Warranty
5 Year Electrical Warranty
5 Year Water Ingress Protection Warranty
Synthetic Rope: 24m x 9mm diameter
Drum Diameter/Length: 63.5mm x 224mm
Mounting Bolt Pattern: 254mm x 114.3mm
Recommended Battery: 650 CCA minimum for winching
Winch Dimensions (L x W x H): 535 x 158 x 187mm
Packing Dimensions (L x W x H): 580 x 200 x 220mm
Winch weight with synthetic rope attached: 19.0kg
Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 26.7kg

Performance Specs (First Layer of Drum)
Line Pull (lbs (kg))	Line Speed (ft/min (m/min))	Motor Current (amps)	Pull By Layer (layer/lbs (kg))
0	31.8 (12.8)	60 amps	1/10000 (4536)
2000 (1907)	15.1 (4.6)	120 amps	2/8200 (3720)
4000 (1814)	12.8 (3.9)	190 amps	3/6840 (3103)
6000 (2722)	10.8 (3.3)	255 amps	4/5820 (2640)
8000 (3630)	9.2 (2.8)	320 amps
10000 (4536)	7.9 (2.4)	380 amps

SKU	CW-XD10BLK
Brand	CARBON OFFROAD
